Showcase » Can-Am » Outlander MAX 650 EFI XT
Model Quick Search

$11,649.00

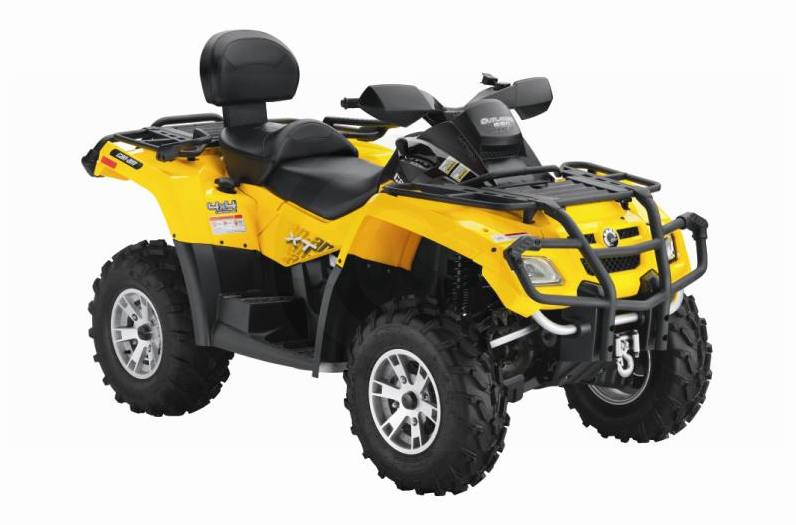

2009 Can-Am Outlander MAX 650 EFI XT
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Rotax V-Twin 649.9cc EFI engine
  • TTI Independent rear suspension
  • Visco-Lok 4x4 front differential
  • Double-A-Arm front suspension
  • CVT Transmission
  • Multi-function gauge
  • Center skid plate
  • MAX Chassis
  • Convertible rack/seat system
The XT package offers all the standard Outlander 650 EFI features, PLUS
  • Cast aluminum rims with aggressive tread Carlisle ACT radial tires
  • 3000-pound [1,361 kg] BRP XL3000 winch
  • Roller fairlead and wired remote winch control
  • Integrated winch remote storage
  • Handlebar with wind deflectors
  • Redesigned heavy-duty front and rear bumpers
XT Added features
  • BRP XL3000 winch
  • Cast aluminum wheels
  • Carlisle 26-inch ACT radial tires
  • Heavy-duty front and rear bumpers
  • Handlebar with wind deflectors
Engine
  • Type: 649.6cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
  • Bore & Stroke: 82 x 62 mm
  • Net Power: 58 Nm @ 5,500 RPM
  • EFI System / Carburetor: 46mm Throttle Body, 2 Siemens VDO injectors
  • Starting System: Electric
  • Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
  • Drive Train: Selectable 2w/4w shaft driven with Visco-lok front differential
Chassis
  • Frame: SST
  • Front Suspension Type: Double A-arm, Forged Aluminum upper arm
  • Travel: 8 in (203 mm)
  • Rear Suspension Type: TTI independent
  • Travel: 9 in (229 mm)
  • Front Brake: 2 inboard hydraulic discs
  • Rear Brake: 1 inboard hydraulic disc
  • Tires/Front: 26 x 8 x 12 in (660.4 x 203 x 305 mm)
  • Tires/Rear: 26 x 10 x 12 in. (660 x 254 x 305 mm)
  • Wheels: Steel
Dimensions
  • L x W x H (in): 94 x 46 x 45 in
  • L x W x H (mm): 2.387 x 1.168 x 1.143 mm
  • Wheelbase: 59 in (1.499 mm)
  • Seat Height: 34.5 in (877 mm)
  • Ground Clearance: 12 in (305 mm)
  • Dry Weight: 710 lbs (322 kg)
  • Towing Capacity: 1300 lbs (590 kg)
  • Rack Capacity: 100 lbs (45 kg); 200 lbs (90 kg)
  • Storage: Rear storage 5.3 US gal (20L) CRS (Convertible Rack System)
  • Fuel Capacity: 5.3 US gal. (20 L)
Features
  • Instrumentation: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip meter, diagnostic center, gear position, hour meter, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, auto shut off after 15 minutes
  • Anti-Theft: D.E.S.S. (Digital Encoded Security System)
  • Electrical: Prewired for winch
  • Lighting: 2 fender mounted headlamps (35W) with tail light / brake light
  • DC Outlet: Lighter type in console, standard connector in the back (15A)
  • Color(s) available: Yellow, Viper Red, Black, Camo
Warranty
  • Basic: 6 months limited factory warranty
  • Extended: B.E.S.T. available from 12 to 36 months
Other features
  • Electronic anti-theft system (D.E.S.S.))
  • Steel racks with 300-pound (136 kg) capacity
  • SST frame

Specifications

Engine
Engine Type V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Displacement 649.6 cc
Bore x Stroke 82 x 62 mm
Cylinders Twin
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension Double A-arm, Forged Aluminum upper arm
Front Travel 8 in. (203 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 26 x 8 x 12 in. (660.4 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 26 x 10 x 12 in. (660 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 710 lbs (322 kg)
Front Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Rear Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Towing Capacity 1300 lbs (590 kg)
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 12 in. (305 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in. (2.387 x 1.168 x 1.143 mm)
Wheelbase 59 in. (1.499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Yellow, Viper Red, Black, Camo
Warranty Basic: 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months

Compare Models

 Print








Year 2009
Manufacturer Can-Am
Model Outlander MAX 650 EFI XT
Style Multi-Rider
MSRP* $11,649.00
Chassis
Front Suspension Double A-arm, Forged Aluminum upper arm
Front Travel 8 in. (203 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 26 x 8 x 12 in. (660.4 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 26 x 10 x 12 in. (660 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 710 lbs (322 kg)
Front Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Rear Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Towing Capacity 1300 lbs (590 kg)
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 12 in. (305 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in. (2.387 x 1.168 x 1.143 mm)
Wheelbase 59 in. (1.499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Final Drive
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
Engine
Engine Type V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Displacement 649.6 cc
Bore x Stroke 82 x 62 mm
Cylinders Twin
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Yellow, Viper Red, Black, Camo
Warranty Basic: 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months

Current Promotions

There are currently no promotions available for this product.
